CXL 2-1LW/s, 138-156 MHz

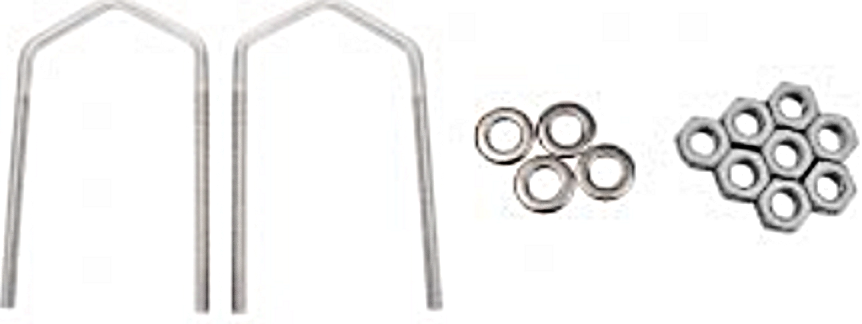

This multi-purpose, omnidirectional, 0 dBd, rod-type base station and marine antenna covers the 160 MHz band in three models with 10 MHz overlap and can be used in a wide variety of applications. Provided with the sturdy “LW” mast mount - a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel. To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter. The cable can be led either on the outside or along the inside of the mast tube. Large bandwidth with respect to both SWR and gain. CXL 2-1LW/… is DC-grounded to substantially reduce noise caused by atmospherical discharges and consequently shows a DC-short across the coaxial cable.
